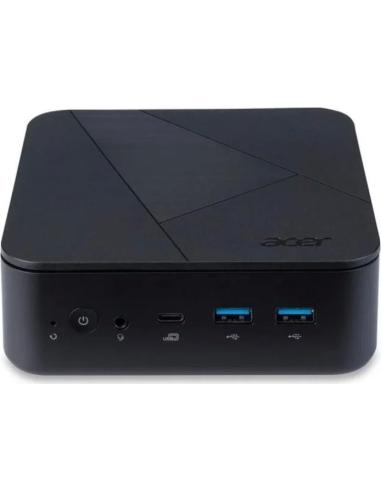

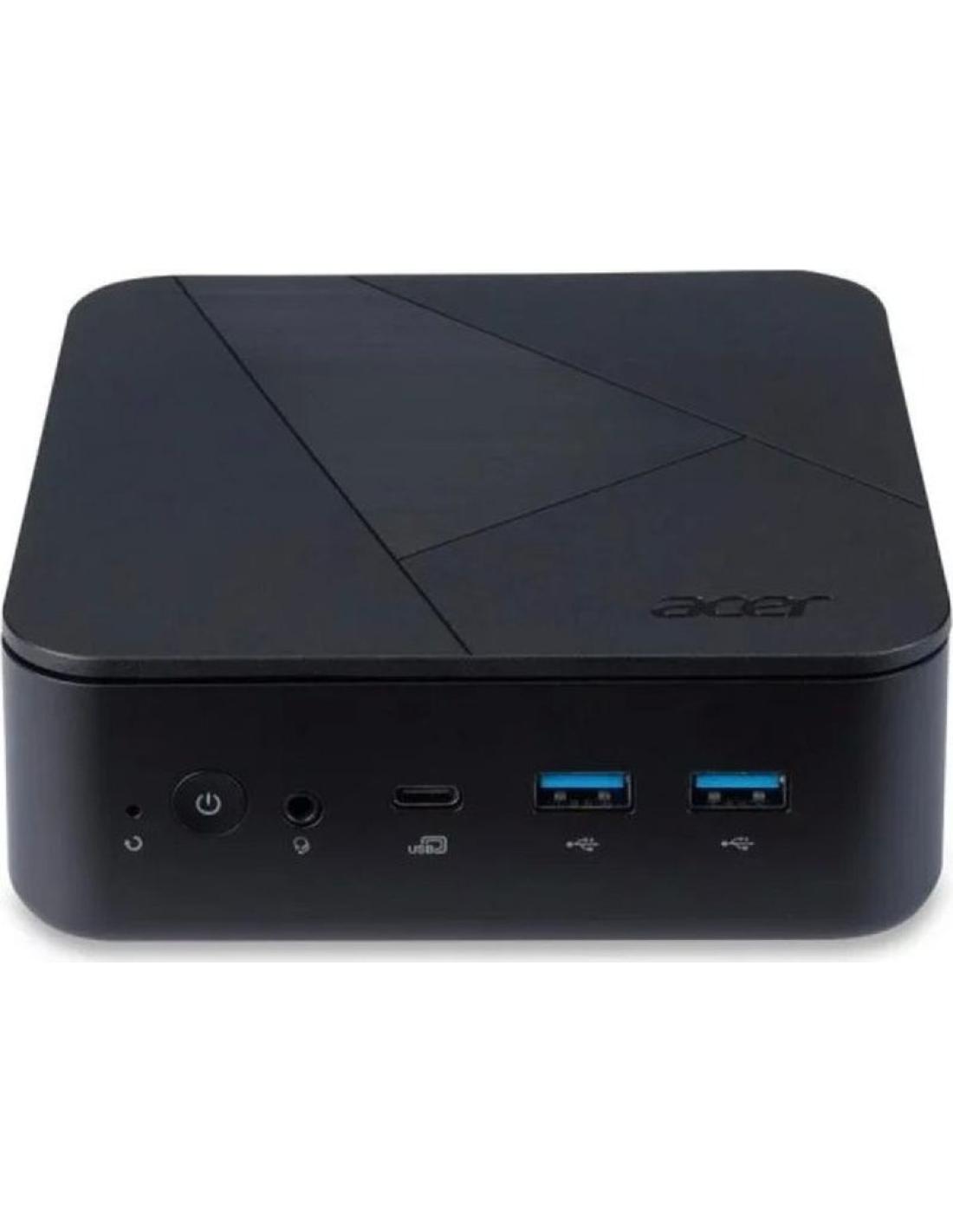

ACER ORDENADOR / PC VERITON VN1502G-13H5UI5-13420H /8GB / 64GBSSD

General Type: Veriton
Operating System: Windows 11 Professional
2nd Operating System: No
Warranty: 1 Year Carry-in
Processor CPU: Ci3-14100

CPU Intel Core i3 14100 LGA 3.5 GHz 5M 1700 65W H0 Raptor Lake- S Refresh 99CC87

# of Cores 10
# of Threads 16
Processor Base Frequency (GHz) 1.3
Max Turbo Frequency (GHz) 4.4
Cache (MB) 20
Intel® Processor Graphics Intel® UHD 730
Graphics Base Frequency (MHz) 128
TDP (W) 35
CPU Type

Raptor Lake (13th Gen)
Raptor Lake-R (14th Gen)
CPU Socket Type LGA 1700
Memory RAM RAM: 16GB SO-DIMM DDR5
RAM 2nd slot Free
Memory Type DDR5 up to 5600MHz
Dual/Single Channel Memory Dual
Number of Memory Slots 2
Maximum Memory Onboard 64GB
Required minimum System Memory size 8GB

Storage Hard Drive: 512G M.2 PCIe SSD Gen4

2nd Hard Drive: No
Optical Drive: No
HDD Interface SATA 6.0 Gb/s
Number of SATA Ports 1x (W1)
Number of M.2 Slots for WLAN (2230) 1
Number of 2280/2242 M.2 Slot for SSD (support PCIE) 1
Tool-less HDD Yes
Video / Graphic Discrete Graphic Card: No
Integrated Graphics Intel® UHD 730
HDMI Port

1
Display Port 1
Max. VGA resolution onboard DP1.4: 4096x2304@60Hz
onboard HDM1.4: 4096x2160@24Hz

Independent Display onboard 2
Chipset Chipset Intel
PCH B760
TPM support Yes

Dimension Dimension (mm) 186.3*186.3*36.2 (W1)
Weight (kg) 1.3kg (W1)
Power supply Power supply External 90W
Options Options 1: Thermal Pad
Options 2: Mini PC Stand
Options 3: Vesa Kit
Options 4: ADP holder for VESA kit
Options 5: Wireless LAN Antenna
Options 6: N
Add on card N
Add on card N
Keyboard USB Black (with PCR plastic)
Mouse USB Black
Internal speaker Yes
Housing Housing kit uSFF(1L)
Number of 3.5 internal bays 0
Tool-less Chassis design Yes

VVN4720GT_W1r

BIOS ACER BIOS Copyright Yes
DMI 2.0 compliance Yes
WFM 2.0 compliance Yes
Mother Board Form Factor Mini-ITX
100% Solid capacitors Yes
FMB / TDP 35W/65W
Network LAN Speed 10/100/1000 Mbps
Independent LAN Controller RTL8111H-CG
WLAN & BT Intel® Wi-Fi 6E & BT 5.0
Audio Audio codec Realtek ALC897
Sound playback High Definition (2 ch)
Rear Audio Jacks 0
Front Audio Jacks 1x Combo
Expansion Number of PCIe x 16 slot 0
Number of PCIe x 1 slot 0
Number of PCI slots 0
Number of Front USB Ports

1x USB3.2 Gen2 Type-C (supporting data transfer, USB charger, video
out and power delivery)
1x USB3.2 Gen2
Number of Rear USB Ports 2x USB 2.0 Type A
2x USB 3.2 Gen1 Type A

Management Standard WOL (Wake on LAN) Yes
PXE (Boot from LAN) Yes
Intel vPro Logo No
Intel AMT No
Other mgmt (ASF,DASH...) No
DMTF Yes
Commercial features HDD password support Yes
Chassis Intrusion Yes
Chassis physical lock Kensington & Pad lock Yes
One Button recovery (OBR) Yes
RAID support No
Jumper Setting Label No

Certification General CE, FCC, Nemko(CB), MET

Eup lot6 Yes
Energy star compliance Yes
EPEAT (selected countries) Yes - Gold (to be requested by country)
TCO 8.0 Yes
GS Yes

• N or N/A refer to Not Applicable
• Acer reserves the rights to remove products from the market or change specifications without prior notice. The text is generic for the model, variation can exist on part number level
• Pictures are intended simply to illustrate the product.
