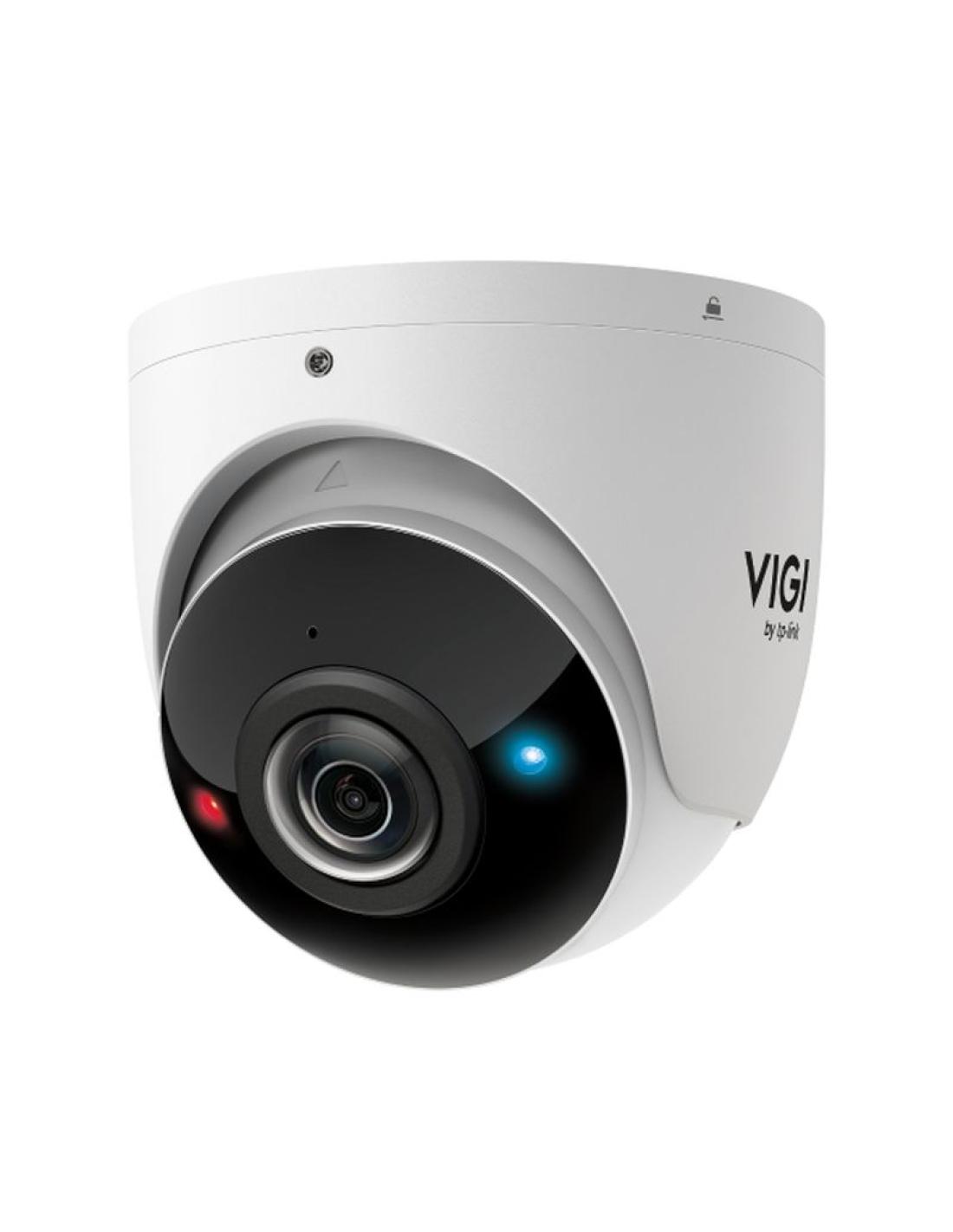

VIGI CAMARA INSIGHT S485PI

Cámara IP VIGI tipo turret Panorámica de 8MP
Visión panorámica de 180° con Huge Vision
Ultra HD 4K (8MP) y alcance de infrarrojos de hasta 20m*1
Luces de advertencia rojas y azules con mayor capacidad de disuasión
Análisis de personas y vehículos*2
Clasificación de personas y vehículos
Detección inteligente
Tecnología de mejora de vídeo inteligente
Interfaz de audio y alarma disponible
Resistente a la intemperie IP67 y a prueba de vandalismo IK10
Tecnología de compresión H.265+

Cámara
Sensor de Imagen 1/2.7“ Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Iluminación Mínima 0.005 Lux; 0 Lux with IR light
Mecanismo Día/Noche IR Cut Filter
Day/Night Switch Unified/ Scheduled/ Auto
LENS
Type Fixed Focal Lens
Focal Length 1.65 mm
Aperture F2.0
FOV 1.65mm:
• Horizontal FOV: 180°
• Vertical FOV: 86°
• Diagonal FOV: 180°
Lens Mount M12
DORI Distance 1.65mm
• Detect: 144.36 ft (44 m)
• Observe: 60.15 ft (18.33 m)
• Recognize: 28.87 ft (8.8 m)
• Identify: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
Range Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
ILLUMINATOR
IR LED Quantity: 4
Range: 65.62 ft (20 m)
Wavelength: 850 nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 3840x2160
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720

Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Compresión de video Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 8 Mbps
Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR = 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 4 Region
OSD Setting Yes
AUDIO
Comunicación de Audio Two-Way Audio
Entrada de Audio Built-in Microphone
Audio In Interface
Salida de Audio Built-in Speaker
Audio Out Interface
Compresión de Audio Yes
Audio Sampling Rate 8 KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
Red
Protocolo TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S/T/G)
Vista en vivo simultánea 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Seguridad Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARMA Y GESTIÓN DE EVENTOS
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device
Alarm Linkage • Memory Card Video Recording
• Upload to FTP Server
• Alarm Output Device
• Push Notifications
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm
Deep Learning Function
People & Vehicle Analytics Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3
INTERFACES
Interfaz de Red 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarma 1 Alarm In, 1 Alarm Out
Red-Blue Warning Lights
Reset Button Yes
Power DC Power Port
Almacenamiento interno Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker Yes
Audio 1 Audio In, 1 Audio Out
GENERAL
Temperatura de funcionamiento -30 to 60 °C
Storage Temperature -40 °C to 60 °C
Humedad de funcionamiento 95% or Less (Non-condensing)
Storage Humidity 95% or Less (Non-condensing)
Contenido del Paquete VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Metal
Peso neto 0.76 Kg
Power Supply • 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3at, class 4, Max. 21 W
Protection IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H) 4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)
Certificaciones CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
