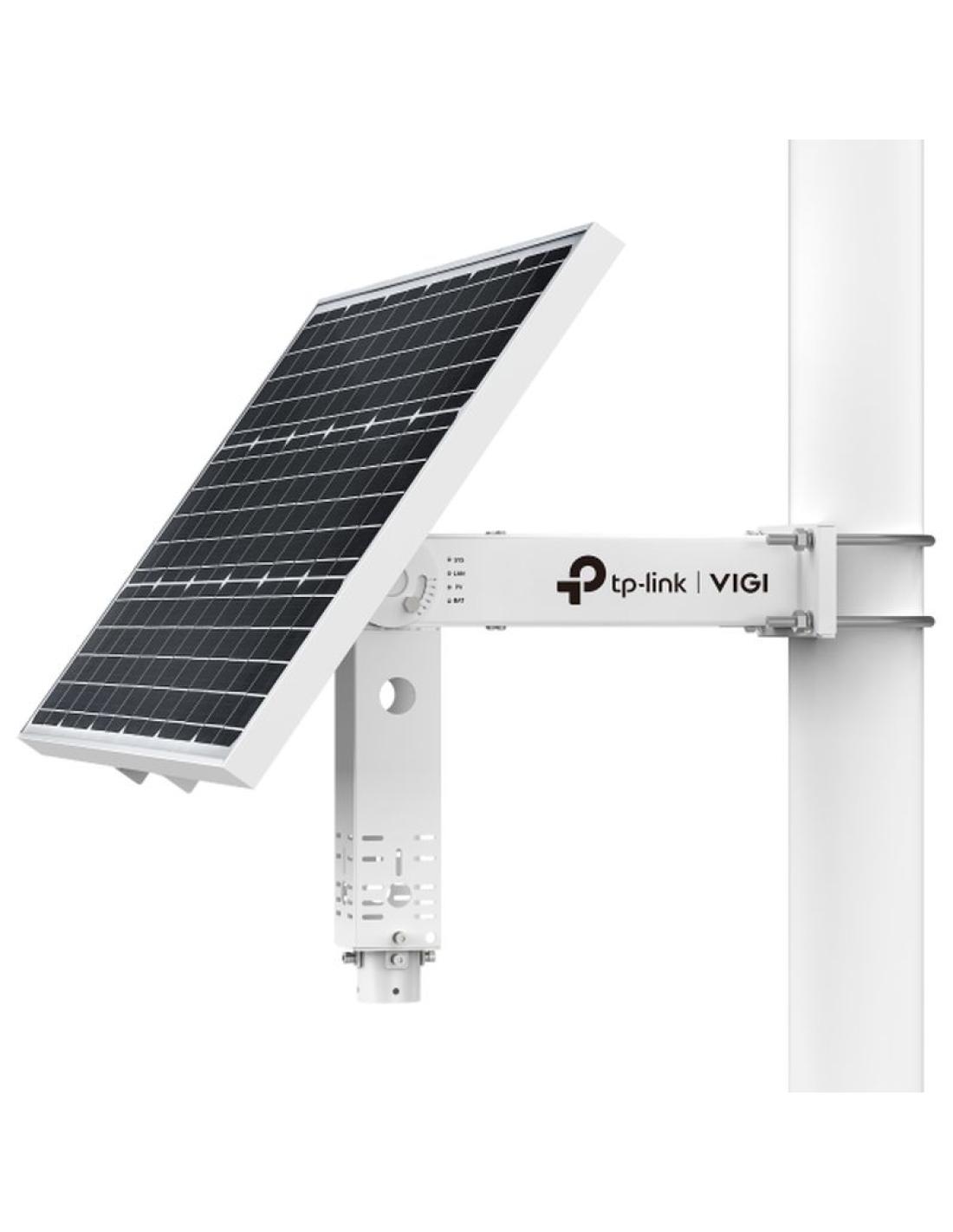

VIGI SISETMA DE PANEL SOLAR INTELIGENTE SP9030

Panel fotovoltaico de 90W y batería de litio de 30Ah/10,8V
Diseño modular
Ángulos ajustables 5°/15°/25°/35°/45°/55
Tecnología de calentamiento auxiliar inteligente
Controlador de carga de seguimiento del punto de máxima potencia (MPPT)
Resistente a la intemperie IP66
Gestión remota
Instalación sencilla
SOLAR PANEL (PHOTOVOLTAIC PANEL)
Power 90 W
Voltage 18 V
Dimensions (L x W x H) 998×516×30 mm (39.3×20.3×1.2 in)
BATTERY
Type Lithium
Intelligent Auxiliary Heat Yes
Battery Capacity 31.2 Ah
Voltage 10.8 V
Max. Output Voltage 12.6 V
Life More than 500 cycles
Dimension 250×74×74 mm (9.8×2.9×2.9 in)
Charging Condition • 0°C~45°C
• -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition • -20°C~60°C
• -30°C~60°C (With intelligent auxiliary heating)
ANGLE ADJUSTMENT (MANUAL)
Range 5°/15°/25°/35°/45°/55°
HARDWARE
Interfaz • 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
• Color: Blue
CARACTERÍSTICAS DE SOFTWARE
Load Control Yes
High and Low Temperature Protection Yes
Overdischarge Protection Yes
Power Consumption Statistics Yes
Displays Real-time Load Status Yes
Battery Level Display Yes
Time Zone Selection Yes
Region Selection Yes
Schedule Saving Yes
Firmware Remote Update Yes
Remote Reboot Yes
Local LAN Management Yes
Smart Charging Control -30°C~5°C
Account Management Yes
Web Management Yes
Remote Reset Yes
Remote Message Push Yes
OTROS
Certificaciones • CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66
Contenido del Paquete • VIGI SP9030
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Dimensiones de la Caja 1110×615×225 mm (43.7×24.2×8.9 in)
Peso • Product Weight: 15 kg
• Package Weight: 17.5 kg
Ambiente • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
• Operating Humidity: 10%~90%RH, Non-condensing
